CRM-V-2
CRM-V-2
Product Code: 1008431000
Product DataSheet

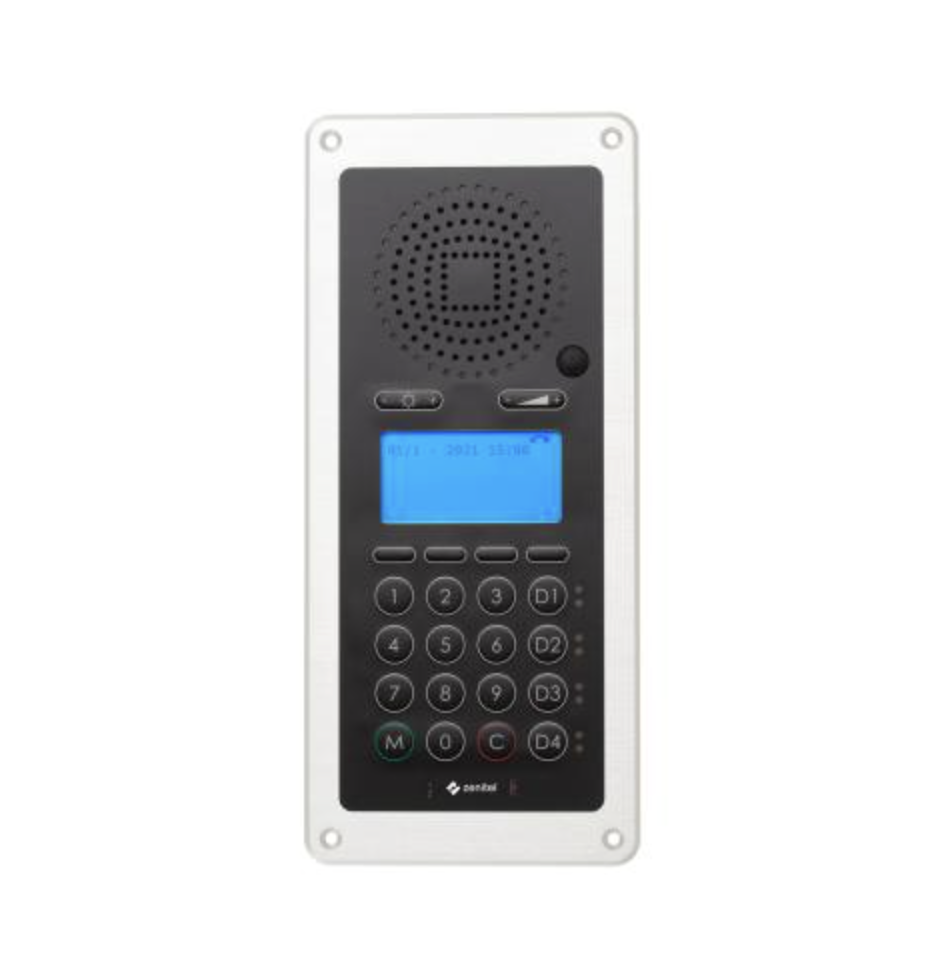

IP Flush Master Station
- Robust aluminium front plate
- Four dynamic navigation keys and four DAK keys for quick access to system menus and directory entries.
- White light behind all keys for excellent readability in dark environments
- Optional noise cancelling goose-neck microphone
- Optional handset unit
- Optional IP DAK-48 Unit
- ONVIF Compatible
- Integrated data switch with advanced networking and security functions
- Superb audio quality – high bandwidth codec, active noise cancellation, acoustic echo cancellation and high output power amplifier
- Clean relay output contact for control of external equipment
SIP
IC-Edge
ICX-AlphaCom
Automatic Gain Control
Active Noise Cancelling
Open Duplex
Control Room Solutions
| General | |||
|---|---|---|---|
| Dimensions (WxHxD) | 125 x 280 x 33 mm | ||
| Weight | 0.63 kg | ||
| Temperature Range | -15ºC to + 50ºC | ||
| Relative humidity | < 95% not condensing | ||
| User interface | Backlit graphical display, 35 mm x 68 mm, 4 function keys, 4 programmable direct access keys (DAK), Green/Red status, LED per DAK, Full keypad, Call indication LED | ||
| Power | Power over Ethernet, IEEE 802.3 a-f, Class 0, Local power 19 – 27 VDC, Idle 4W, max. 8W | ||
| Connectors | RJ45 (Ethernet) - RJ11 (Handset & Headset), Pluggable screw terminals (I/O local power) | ||
| Remote control Max. switching capacity , Max. voltage relay, Max current relay | 3 digital inputs, 1 relay output and one logical output, 30W DC, 60V DC, 1A DC | ||
| SIP | RFC 3261, SIP Info (DTMF), RFC 2833 (DTMF) | ||
| IP protocols | IP v4 - TCP - UDP - HTTPS – TFTP - RTP - RTCP -DHCP - SNMP - DiffServ - TOS – ONVIF - CCoIP® - SIP - RSTP | ||
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f), VLAN (IEEE 802.1pq), Network Access Control (IEEE 802.1x) | ||
| Audio technology | Telephony 3.4kHz (G.711) , Wideband/HD Voice (G.722), Active noise filtering, Acoustic echo cancellation, Open duplex, Volume override | ||
| Audio output | 1.5 Watt - 75 dB @ 1 m from speaker, additional connector for external speaker, max 5 W | ||
| Management and operation | HTTPS (Web configuration), DHCP and static IP, Remote automatic software upgrade, Centralized monitoring, Status LED | ||
| Advanced features | Dual port managed data switch supporting VLAN and network access control | ||
| Compliance | CE and FCC Part 15 | ||
| IP Rating | IP-32 | ||
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
