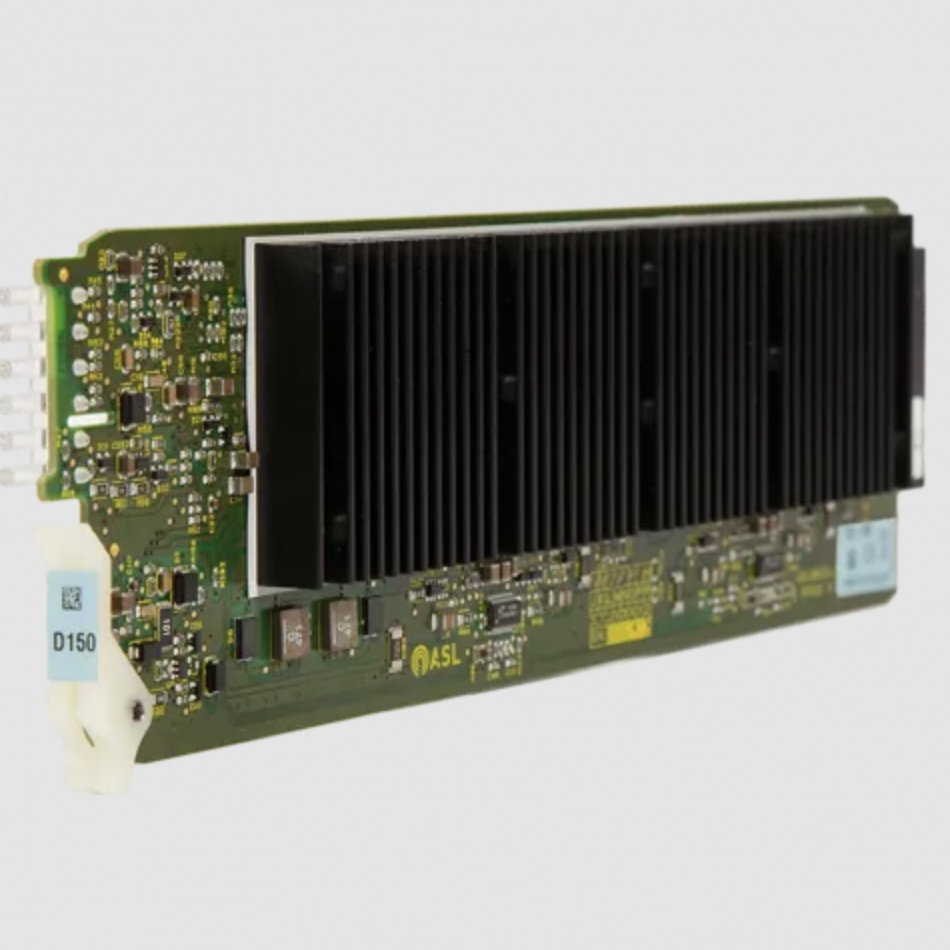

Candle image #1

D150

Product Code: 1200202150
Product DataSheet


PAVA 150W Power Amplifier Module for the V2000 / INTEGRA

  • EN 54-16 CERTIFIED
  • CLASS D TRANSFORMERLESS AMPLIFIER
  • VERY HIGH EFFICIENCY AND LOW STANDBY CURRENT
  • UP TO 150W RMS OUTPUT @ 100V (SINE SIGNAL)
  • SOFTWARE CONFIGURABLE POWER FROM 25W to 150W
  • SOFTWARE CONFIGURABLE OUTPUT VOLTAGE 100V, 70V, or 50V
  • COMPATIBLE WITH THE V2000 AND INTEGRA RANGES

Logo EN 54 Certified
Logo Public Address
Logo Voice Alarm
Logo Commercial Audio
Logo Civil Defence Approval

The D150 is a class D transformerless amplifier card which can be configured to provide either 100V, 70V or 50V audio outputs. The maximum output power is user configurable from 25W to 150W.

Up to 10 D150 and or D500 amplifiers modules can be housed within a single V2000 or INTEGRA amplifier mainframe. The configurable output power capability of the amplifier modules enables very flexible use of the mainframe, with reduced mainframe count, lower quiescent power requirement, and improved environmental performance compared with traditional amplifier designs.
