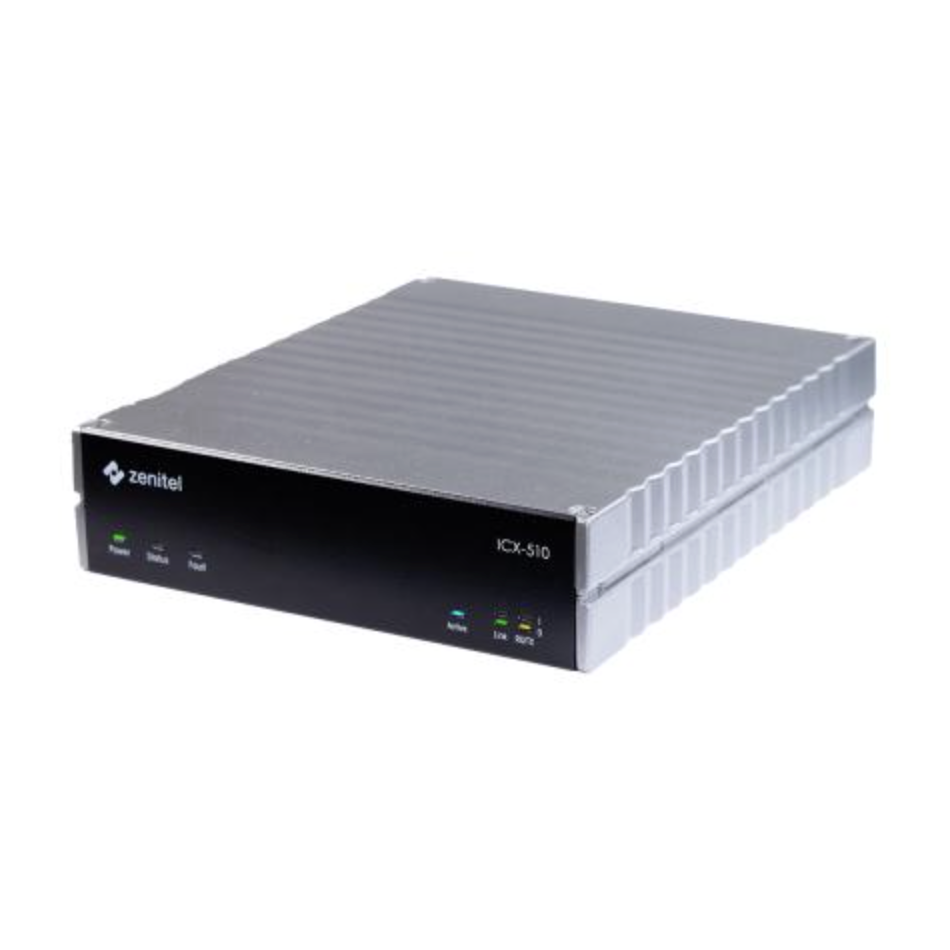

ICX-510-IA Intelligent Communication Gateway
ICX-510-IA Intelligent Communication Gateway
Product Code: 1002000110
Product DataSheet
ICX-510 incl ICX-AlphaCom Core
- Made to provide critical communication in any environment
- Supports 552 IP stations
- Environmentally friendly and energy saving - max. 15 W
- Global networking and integration
- Dual software images for system robustness and low downtime during software upgrades
- Secure boot, hardware Root of Trust - RoT
- High quality professional PA broadcasting and messaging services
- Security voice guidance for public safety and building security
- 1U high, fanless design, vibration proof
UL Certified Intercom
ICX-AlphaCom
HD Voice
| MECHANICAL & ENVIRONMENTAL | |||
|---|---|---|---|
| Dimensions (WxHxD) | 162 x 44.5 x 200 mm / 6.38 x 1.75 x 7.87 inches | ||
| Weight | 1 kg / 2.2 lbs | ||
| Power | Nominal 24VDC - 48VDC, 15 W (min/max: 20VDC-63VDC) | ||
| Mounting | Wallmount or 19” rack | ||
| Processor subsystem | NXP LS1043 | ||
| Storage subsystem | Solid state (4048 MB Flash). MicroSD, USB | ||
| Temperature Range | -15°C to +55°C / 5°F to 131°F | ||
| Relative Humidity | 95% |
| FEATURES | |||
|---|---|---|---|
| Memory | 4048 MB SDRAM, 4048 MB NAND Flash, 128 MB NOR Flash | ||
| Subscriber Capacity | 552 intercom stations per server | ||
| Busy Hour Call | 60 000 BHCA | ||
| Network ports | High speed, up to 1 gigabit per second | ||
| Software Integrity Check | SHA256 | ||
| IP Priority | DiffServ, IP TOS | ||
| IP Security | Hardware root of trust, SSH, HTTPS, firewall | ||
| SIP | RFC 3261, SIP INFO, RE-Invite. RFC 2833, RFC 4733, | ||
| VoIP Internal Networking | 64 channels | ||
| VoIP External Networking | 64 channels | ||
| ISDN Trunk | ISDN PRI (30 channels); VoIP external networking + gateway | ||
| Analog Trunk | FXO (4 & 8 channels); VoIP external networking + gateway | ||
| GSM Trunk | Quad band GSM; VoIP external networking + gateway | ||
| Other | Vingtor-Stentofon Data scripting engine (EDIO) | ||
| VoIP Audio | HD Audio - 16 kHz (background music, see additional information on the Zenitel wiki), HD Voice - G.722 (7 KHz), Telephone Audio - G.711 (3.4 KHz) | ||
| Configuration | AlphaPro over IP, Web | ||
| Monitoring and Logging | SNMP trap, SNMP MIB, syslog, Web, e-mail, SqLite | ||
| SW Upgrade | System recovery upgrade via SD-card, Web, Automatic upgrade of IP station | ||
| Open Duplex Conference | 20 open duplex conferences can be configured. A maximum of 32 subscribers can participate in 1 conference or spread over multiple conference channels simultaneously. | ||
| Push-to-Talk Conference | 50 conference channels. Unlimited number of participants. Priority features | ||
| Group Call | 250 groups. Unlimited number of participants. Priority features | ||
| Call Modes | Open mode. Ringing mode. Call request mode. Priority features | ||
| Audio Messaging | PA broadcasting. Auto-attendant, Voice guidance (doors, elevators), Security voice response | ||
| Compliance | CE, FCC Part 15 | ||
| Certifications | IEC/UL62368-1, EN61000-6-X, EN60945, EN 50121-4; In order to comply with UL safety requirements, the unit has to be supplied by a power supply specified as a Limited Power Source (LPS) or PS2 (cased on IEC/UL 62368-1 definition) or NEC Class 2 source of supply |
| CERTIFICATIONS | |||
|---|---|---|---|
| EMC | IEC/EN 61000-6-2 Industrial Immunity | ||
| IEC/EN 61000-6-4 Industrial Emissions | |||
| IEC/EN 61000-6-1 Light Industrial Immunity | |||
| IEC/EN 61000-6-3 Light Industrial Emission | |||
| EN 55032 class B Multimedia equipment | |||
| Maritime | IEC/EN 60533 Maritime | ||
| IEC/EN 60945 | |||
| Vibration | 2Hz-100Hz (IEC/EN 60068-2-6) | ||
| Dry heat | 55°C (131°F) (IEC/EN 60068-2-2) | ||
| Low Temperature | -15°C (5°F) (IEC/EN 60068-2-2) | ||
| Damp Heat, Cyclic | 40°C (104°F) / 93%RH (IEC/EN 60068-2-2) | ||
| Safety | UL62368-1 certification | ||
| CB certification to IEC62368-1 |
