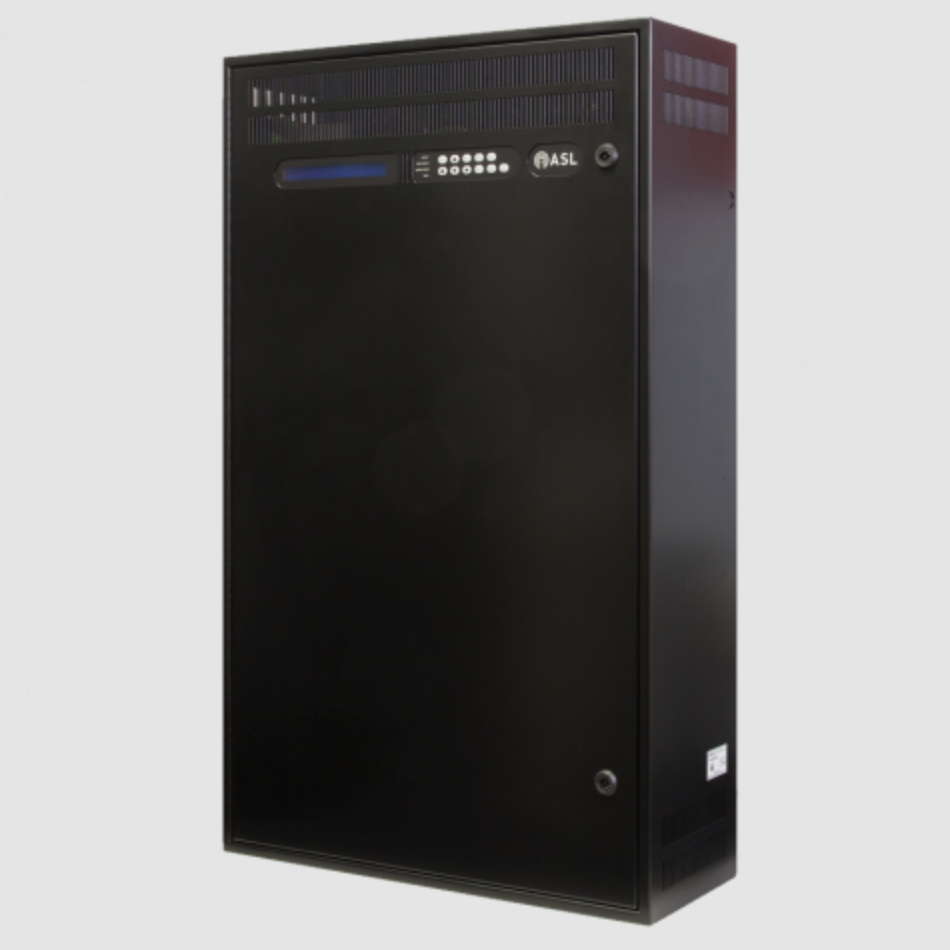

Candle image #1

INTEGRA-03

Product Code: 1200300030
Product DataSheet


Wall Mount PAVA System (3 amps)

  • EN 54-16 CERTIFIED
  • SELF-CONTAINED WALL MOUNT PAVA SYSTEM
  • SIMPLE INSTALLATION WITH MOUNTING FOR BATTERIES
  • PRE-INSTALLED WITH 3 AMPLIFIER CHANNELS, EACH CAPABLE OF UP TO 500W @100V
  • HIGH QUALITY PROFESSIONAL AUDIO PROCESSING
  • 24 BIT 48 kHz AUDIO PROCESSING
  • 12 ANALOGUE AUDIO INPUTS & OUTPUTS / 6 IP AUDIO INPUTS
  • ON BOARD GENERAL PURPOSE INPUTS & OUTPUTS
  • FLEXIBLE CONTROL OPTIONS
  • INTEROPERABILITY WITH THE VIPEDIA RANGE

Logo EN 54 Certified
Logo Public Address
Logo Voice Alarm
Logo Commercial Audio
Logo Civil Defence Approval

The INTEGRA-03 all-in-one network enabled voice alarm solution is available with three channels of pre-installed amplification, which can be expanded at a later date.

The unit has 12 audio inputs and internal storage for up to 64 recorded messages. With the possibility to upgrade with additional amplifier cards, a single INTEGRA-03 unit can deliver a maximum power of 2000W.  With integrated audio-over-IP networking, powerful audio  processing, and integrated battery charger and battery mounting shelf all in a compact wall-mount enclosure, INTEGRA provides a complete voice alarm solution for both medium to large centralised and decentralised PAVA systems.

Up to 32 INTEGRA can be linked by IP to enable broadcasts from any location to any combination of zones in large decentralised systems. The network switch (NETWORK-SWITCH-LP01) forms a voice alarm compliant ring network topology and can be easily mounted inside the enclosure.

Any INTEGRA variant and the rack mount equivalent VIPEDIA range interoperate seamlessly.

For full details see Documents
Power
AC Supply Voltage   230V (+25% / -16%)
AC Supply Frequency   50 / 60 Hz
Quiescent Current (no amplifiers)   525mA
Quiescent Current (per amplifier)   23mA
Maximum Audio Output Power   2000W
