INTEGRA-10

INTEGRA-10

Product Code: 1200300100
Product DataSheet

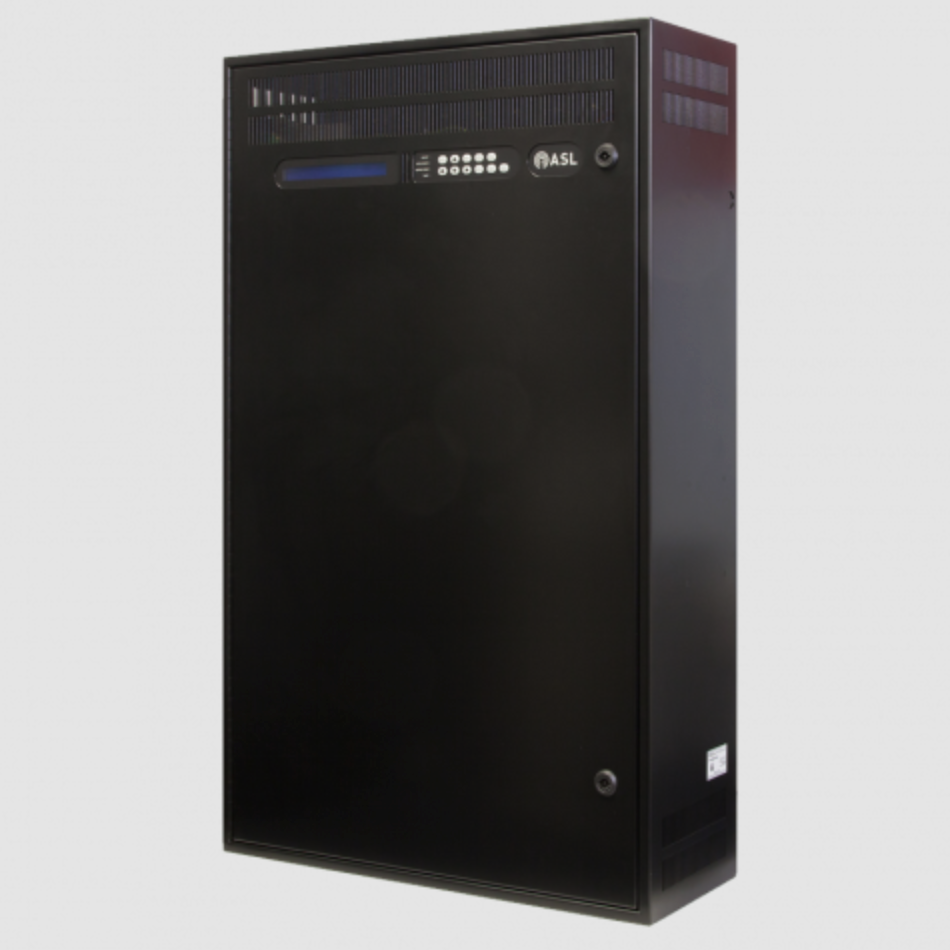

PAVA Wall Mount System (10 amp channels pre installed)

INTEGRA-10 Public Adress and Voice Alarm

  • EN 54-16 CERTIFIED
  • SELF-CONTAINED WALL MOUNT PAVA SYSTEM
  • SIMPLE INSTALLATION WITH MOUNTING FOR BATTERIES
  • PRE-INSTALLED WITH 10 AMPLIFIER CHANNELS, EACH CAPABLE OF UP TO 500W @100V
  • UP TO A TOTAL, 2000W @ 100V PER INTEGRA
  • HIGH QUALITY PROFESSIONAL AUDIO PROCESSING
  • 24 BIT 48 kHz AUDIO PROCESSING
  • 12 ANALOGUE AUDIO INPUTS & OUTPUTS / 6 IP AUDIO INPUTS
  • ON BOARD GENERAL PURPOSE INPUTS & OUTPUTS
  • FLEXIBLE CONTROL OPTIONS
  • INTEROPERABILITY WITH THE VIPEDIA RANGE

Logo EN 54 Certified
Logo Public Address
Logo Voice Alarm
Logo Commercial Audio
Logo Civil Defence Approval
The INTEGRA-10 Public Adress and Voice Alarm all-in-one network enabled voice alarm solution is available with ten channels of pre-installed amplification.
The unit has 12 audio inputs and internal storage for up to 64 recorded messages. With a maximum power of 2000W, integrated audio-over-IP networking, powerful audio  processing, and integrated battery charger and battery mounting shelf all in a compact wall-mount enclosure, INTEGRA provides a complete voice alarm solution for both medium to large centralised and decentralised PAVA systems.Up to 32 INTEGRA can be linked by IP to enable broadcasts from any location to any combination of zones in large decentralised systems. The network switch (NETWORK-SWITCH-LP01) forms a voice alarm compliant ring network topology and can be easily mounted inside the enclosure.Any INTEGRA variant and the rack mount equivalent VIPEDIA range interoperate seamlessly.
