Product Code: 1008093000
Product DataSheet

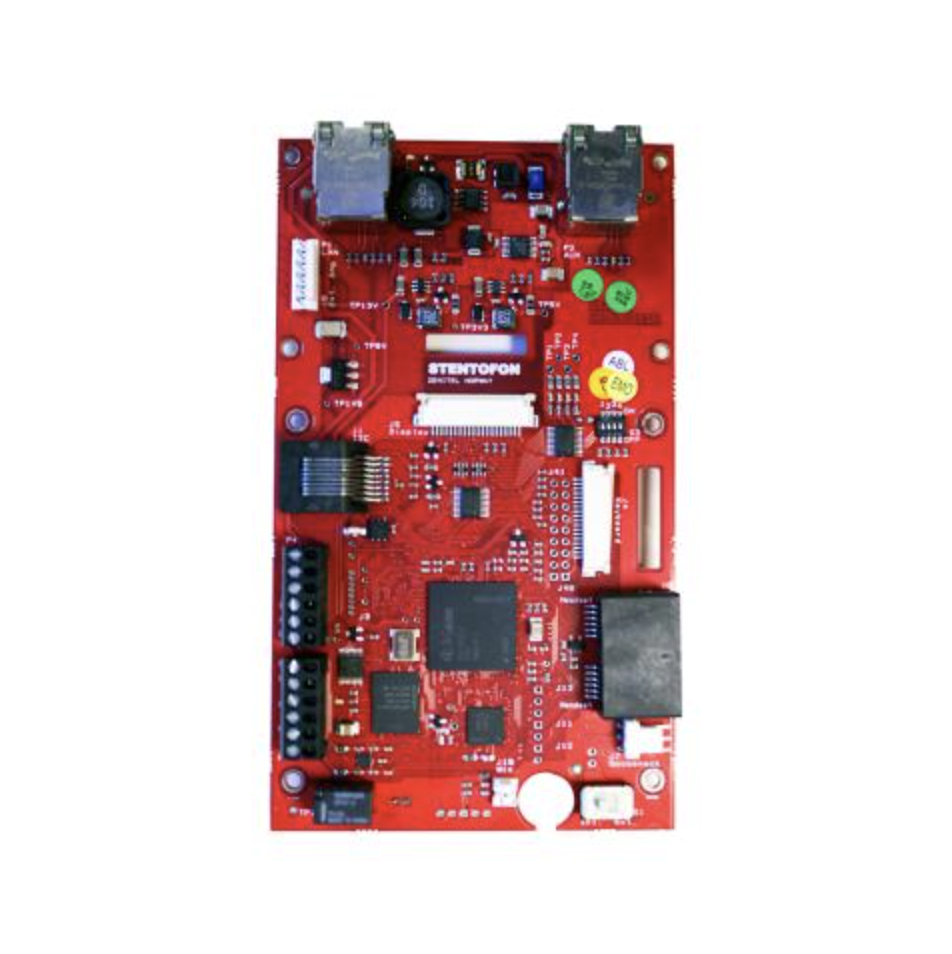

IP Master Station Kit
- Master station PCB made for Critical Communication over IP (CCoIP®) in custom made station housings
- Superb audio technology – gives loud-speaking hands-free duplex communication from any location in the room
- Integrated data switch with advanced networking and security functions
- Supports large high contrast display with white backlight for excellent readability
- Supports handset and headset
- Supports full keyboard
- Supports digital inputs and output via built-in relay
- Supports external audio amplifiers
| General | |||
|---|---|---|---|
| Dimensions (WxHxD) | 88 x 152 x 20 mm | ||
| Weight | 250 g | ||
| Temperature | -40˚C to +55˚C | ||
| Relative humidity | 0% - 95% | ||
| Power | Power over Ethernet, IEEE 802.3 a-f, Class 0, Local 19-27 VDC power, Idle 4 W, max. 13 W (ext. amplifier), 6W power out to external units | ||
| Connectors | Ethernet: 2 x RJ45 10/100 Mbit/sec, Handset: R J11, Handset: R J11, Microphone: 3-pin plug (Electret, dynamic) Loudspeaker: Plugable screw terminal (1.5 W, 8 Ohm) 24 VDC in, 1 relay out: 6-pin plugable screw terminal LED, 3 inputs: 6-pin plugable screw terminal Gooseneck microphone: 3-pin IDC (Electret) Display: 20- pin ZIF, Keyboard: 18-pin ZIF + solder holes (Digits 0-9 + M and C, 10 DAK, 4 softkeys, volume control, backlight control) Audio out: 6-pin IDC (0 dB / 600 Ohm, 13 V power out) I2C bus: 6-pin mini (DAK modules, relay modules, +3.3 V power output) | ||
| Remote control, Max. switching capacity, Max. voltage relay, Max. current relay | 3 digital inputs, 1 relay output and one logical output 30W DC, 60V DC, 1A DC | ||
| SIP | RFC 3261, SIP info (DTMF), RFC 2833 (DTMF) | ||
| IP protocols | IP v4 - TCP - UDP - HTTPS – TFTP - RTP - RTCP -DHCP - SNM P - DiffServ - TOS – Vingtor-Stentofon CC oIP® - SIP | ||
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f), VLAN (IEEE 802.1pq)*, Network Access Control (IEEE 802.1x)* | ||
| Audio technology | Wideband 200 Hz - 7 kHz (G.722), Telephony 3.4kHz (G.711), Active noise filtering, Acoustic echo cancellation, Open duplex, Adaptive jitter filter, Volume override | ||
| Management and operations | HTTPS (Web configuration), DHCP and static IP , Remote automatic software upgrade, Centralized monitoring, Status LED | ||
| Advanced features | Dual port Ethernet switch, Support for external PA amplifier, Support for external smart PA amplifier with switching and status, Support for external display modules, Support for external I/O modules | ||
| Compliance | CE and FCC Part 15 | ||
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
