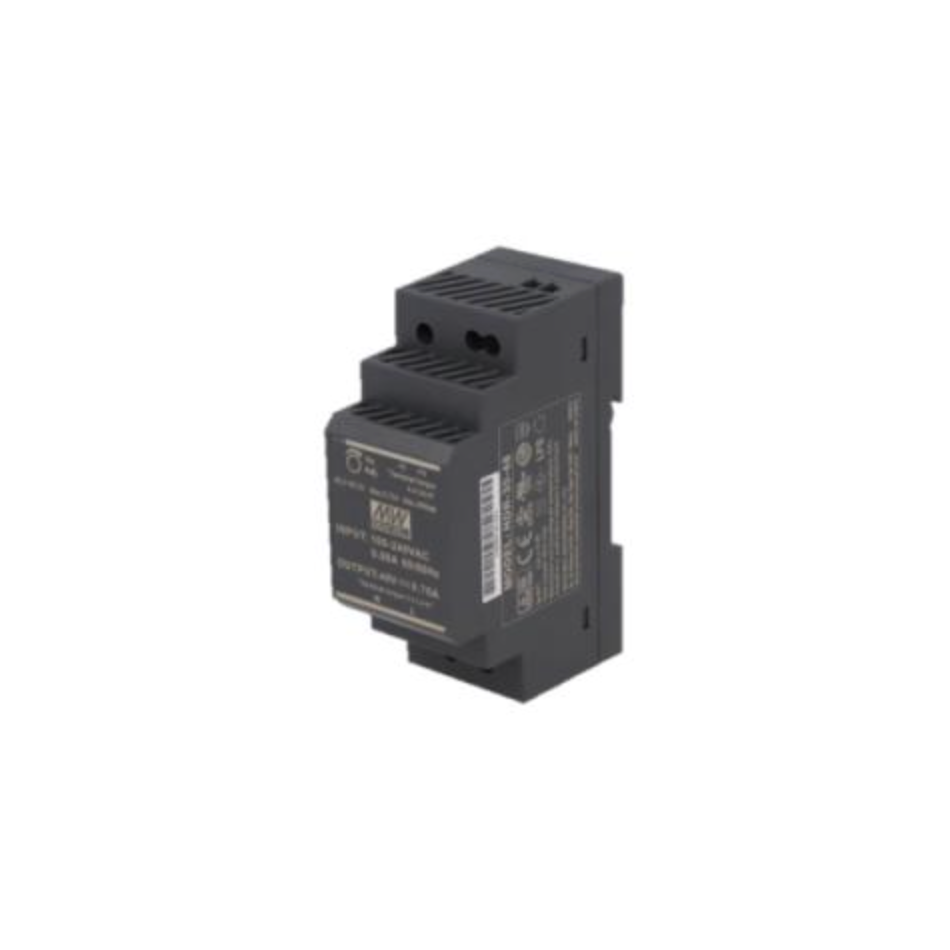

IPS-AC1
IPS-AC1
Product Code: 1002510000
Product DataSheet
PSU for ICX-500/510
- DIN-Rail mounting
- Ultra slim design with 35 mm (2SU width)
- Input 85~264 VAC, Output 48VDC
- No load power consumption <0.3W
- Isolation class II
- Pass LPS (Limited Power Source)
- Protections : Short circuit / Overload / Over voltage
- Over voltage category III
- LED indicator for power on
In order to comply with UL safety requirements, ICX-500/510 has to be powered by a Limited Power Source (LPS) or PS2 (based on IEC/UL 62368-1 definition) or NEC Class 2 source of supply.
Zenitel's PSU IPS-AC1 (1002510000) meets this criterion.
| General | |||
|---|---|---|---|
| Size (WxHxD) | 35 x 90 x 55 mm | ||
| Weight | 0.12 kg including packaging | ||
| Nominal output voltage | 48V DC | ||
| Voltage adjustment range | 43.2 - 55.2 V DC - fully within the ICX-500 min/max voltage specification | ||
| Input voltage | 85VAC - 264VAC | ||
| Rated power | 36W | ||
| Operating Temperature and humidity | -30 °C to 70 °C; 20-90 % non-condensing | ||
| Storage Temperature and humidity | -40 °C to 85 °C; 10-95 % non-condensing | ||
| Operating altitude | 2000 meters, operating temperature derates at 3.5°C/1000 meters above 2000 meters | ||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||
| Mounting | DIN rail TS-35/7.5 or 15 mountable | ||
| EMC Emission | EN55032, EN61000-3-2, EN61000-3-3 | ||
| EMC Immunity | EN55024, EN55035, EN61000-6-2, EN61204-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11 | ||
| Safety | UL60950-1, UL508, EN61558-2-16, IEC60950-1, EACTP TC 004, BSMI CNS14336-1 |
