IPVRS-1
IPVRS-1
Product Code: 1008041200
Product DataSheet
Vandal Resistant SIP & IP Intercom
- Robust - Stainless steel front plate with one call button
- Advanced Audio Technology - High sound pressure levels, automatic volume gain control, and active noise and echo cancellation for superior clarity.
- Weather-Resistant (IP55) & Robust (IK08)
- 2 Relay outputs for remote control, e.g. doors, signal lamps and gates
- ONVIF Conformant - Seamless video and device integration
- Flexible Installation - Options for wall or flush mounting
- Seamless Integration - Fully compatible with Zenitel Connect Pro, ICX-AlphaCom, IC-EDGE, and SIP-based systems.
Zenitel ConnectPRO
SIP
ONVIF Conformant
IC-Edge
ICX-AlphaCom
IK08
HD Voice
Prison Intercom
Emergency points

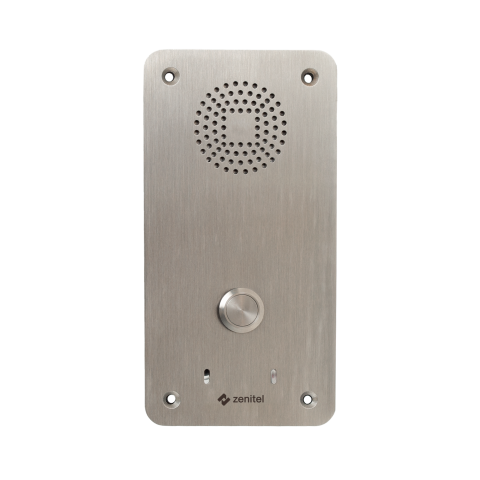

The IPVRS-1 is a rugged SIP and IP intercom station built to perform in demanding environments. Featuring a durable 316L stainless-steel front plate with IK08 impact protection and IP55-rated resistance to dust and water, it ensures reliable operation at critical communication points. With advanced audio technologies, including echo cancellation and wideband codecs, and full support for open standards, the IPVRS-1 integrates seamlessly into modern IP networks for security, access control, and emergency communication applications.
| AUDIO | |||
|---|---|---|---|
| Codecs | G.711, G.722, G.729 | ||
| Frequency range, G.722 Codec | 200 Hz to 7000 Hz | ||
| Audio technology | Full open duplex, switched open duplex | ||
| Sound level detection (scream alarm) | |||
| Automatic gain control | |||
| Automatic volume control (AVC) | |||
| Acoustic Echo Cancellation (AEC) | |||
| Noise cancellation | |||
| Internal speaker amplifier | 10 W class D | ||
| Microphone technology | Electret microphone |
| NETWORKING AND PROTOCOLS | |||
|---|---|---|---|
| Application Protocols | SIP, SIPS, HTTP, HTTPS, TFTP, RTP, SRTP, RTCP, RTSP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery | ||
| IP Versions | IPv4 & IPv6 | ||
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f), Network Access Control (IEEE 802.1x) | ||
| Supervision functions | Keep alive test, tone test, status reports | ||
| SIP support | RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info) | ||
| DTMF support | RFC 2833, 2976 (SIP info) | ||
| Integration and API | Connected to ICX-AlphaCom through AlphaCom protocol ACDP | ||
| Connected to Zenitel Connect Pro though Zenitel Link | |||
| ONVIF |
| HARDWARE | |||
|---|---|---|---|
| Ethernet connector | 2 x RJ45 | ||
| General inputs and outputs | 6 (configurable) | ||
| Outputs | 12mA as LED drivers | ||
| Change-over relays (NO+NC+COM) | 2 relays, max: 60VDC, 2A, 60W | ||
| Power options | PoE and or external power supply | ||
| PoE (power over Ethernet) | IEEE 802.3af standard, Class 0 (0.44W to 12.95 W) | ||
| External power supply | 24 VDC (16 to 48 V) | ||
| Power consumption | Idle 1.8W, max 13W (depending on volume) |
| Construction | |||
|---|---|---|---|
| Dimensions (HxWxD) | 180 x 92 x 46 mm / 7.1'' x 3.6'' x 1.8'' | ||
| Weight | 0.8 kg / 1.8 lbs. | ||
| Frontplate material | AISI 316L | ||
| Protection | Vandal resistant design, 2 mm stainless steel front, tamper proof loudspeaker grill, button and fastening screws |
| ENVIRONMENT AND COMPLIANCES | |||
|---|---|---|---|
| IP rating | IP55 | ||
| IK rating | IP08 | ||
| Operating temperature range | -40° to 70° C / -40° to 158 ° F | ||
| Storage temperature range | -40° to 70° C / -40° to 158 ° F | ||
| Relative humidity | < 95% not condensing |
| Approvals | |||
|---|---|---|---|
| EMC | EN 61000-6-1, EN 61000-6-3, FCC part 15 | ||
| Sustainability | RoHS, REACH |
| Other Specifications | |||
|---|---|---|---|
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
