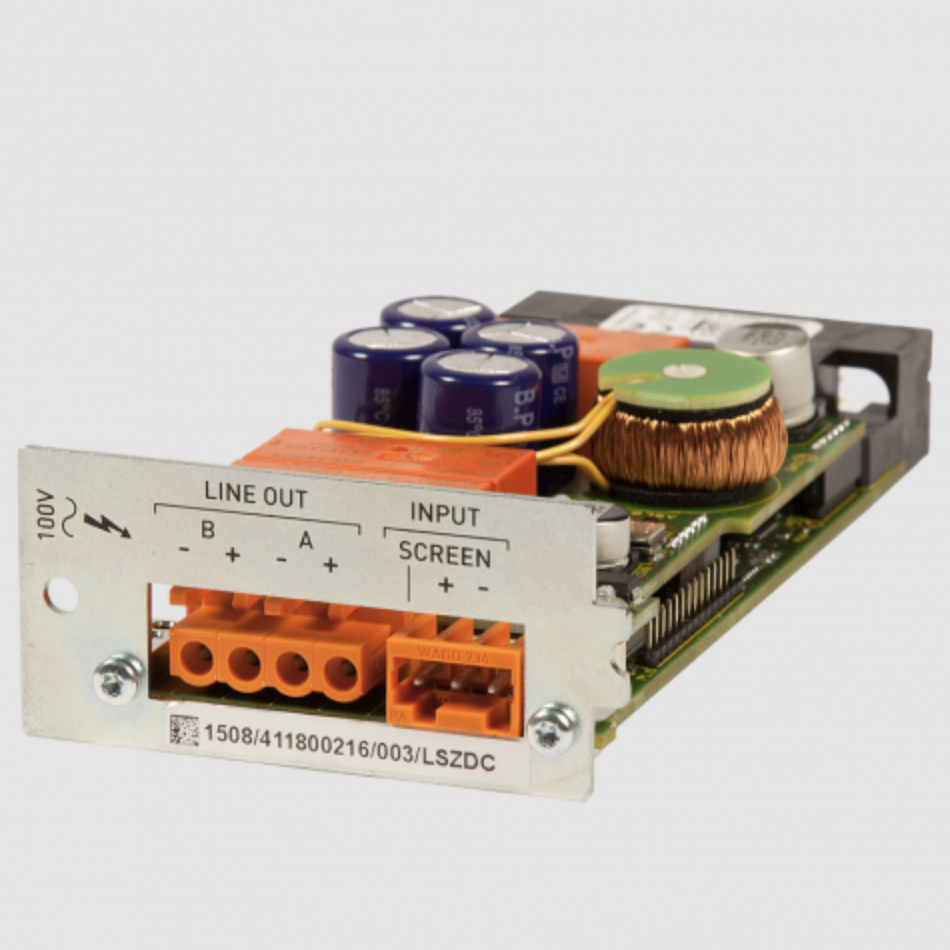

Candle image #1

LSZDC

Product Code: 1200540000
Product DataSheet


PAVA Amplifier Interface Module for the V2000 / INTEGRA

  • EN 54-16 CERTIFIED
  • POWERFUL ON-BOARD DSP CAPABILITY
  • CONFIGURABLE DC / IMPEDANCE / LOOP MONITORING (A TO B)
  • INDEPENDENTLY MONITORED A / B SPEAKER LINE PER AMPLIFIER
  • AUTOMATIC CONTROL OF CHANGEOVER TO STANDBY
  • COMPATIBLE WITH THE V2000 AND INTEGRA RANGES

Logo EN 54 Certified
Logo Public Address
Logo Voice Alarm
Logo Commercial Audio
Logo Civil Defence Approval

The LSZDC is an amplifier interface card for use with the D500 and D150 Class-D Amplifiers. It enables two circuits (A&B) to be fed from a single amplifier while still maintaining BS5839 Pt 8 compliance.

This interface card provides; amplifier health monitoring via subsonic surveillance tone, standby switchover, loudspeaker line earth leakage monitoring and loudspeaker line ‘End Of Line’ (EOL) monitoring. Loudspeaker circuits can be monitored using DC, Impedance or Loop Return methods.

In addition, the LSZDC includes powerful on-board DSP (digital signal processing) capability, enabling parametric equalisation, gate and gain settings to be applied separately to that applied by the VIPEDIA audio router.
