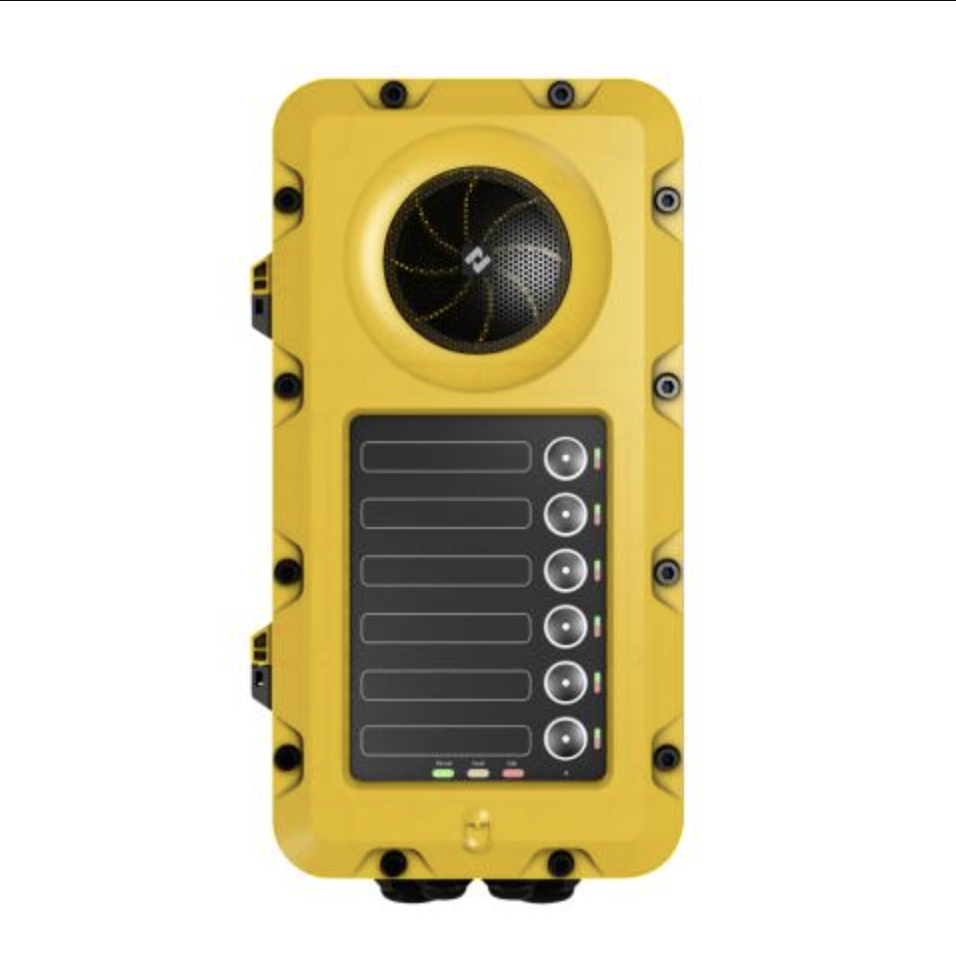

TFIE-2
TFIE-2
Product Code: 1008122020
Product DataSheet
IP and SIP Intercom
- CCoIP/VoIP intercom for industrial environments
- Dual Ethernet connectivity for redundant networks
- ONVIF Compatible
- PoE powered
- Auxiliary DC power for redundancy
- DIP functionality for use with AlphaCom audio servers
- SIP/VoIP functionality for use with 3rd-party systems
- Dual relay outputs
- 6 configurable I/Os
- Dust- and water-protected to IP 66
- Accessories include Handheld PTT, Headset with ON/OFF and PTT and Handset with PTT
- Monitoring and self-diagnostics of critical functionality
- Visible status indicators on front panel
UL Certified Intercom
IP66
HD Voice
Automatic Gain Control
Active Noise Cancelling
Industrial Intercom
Automatic Volume
Open Duplex
Voice Activity Detection
| AUDIO | |||
|---|---|---|---|
| Noise cancelling - suppression of musical noise | YES | ||
| Noise cancelling - suppression of static noise | YES | ||
| Noise cancelling - suppression of rapidly changing noise | YES | ||
| Codecs | G.711, G.722, G.729 | ||
| Frequency range, G.722 Codec | 200 Hz – 7000 Hz | ||
| Audio technology | Modes: Full open duplex, switched open duplex | ||
| Adaptive jitter filter | |||
| Local tone generator | |||
| Audio mixing - 3 channels | |||
| Sound level detection (scream alarm) | |||
| Automatic gain control (microphone) | |||
| Automatic volume adjustment | |||
| Internal speaker amplifier | 10 W class D | ||
| Automatic Volume Control (AVC) | Undistorted and clear audio | ||
| Acoustic Echo Cancellation (AEC) | Prevents audio feedback even at high volumes (95dB) | ||
| 10W Speaker | Matches 10W amp for distortion-free broadcast level sound |
| MECHANICAL | |||
|---|---|---|---|
| Dimensions | 345 x 178 x 101 mm | ||
| Weight | 1.9 kg | ||
| Mounting | On-wall box (included) | ||
| Color | Yellow + Black |
| ENVIRONMENTAL | |||
|---|---|---|---|
| Operating temperature | -40°C to +70°C (-40°F to +158°F) | ||
| Storage temperature | -40°C to +70°C (-40°F to +158°F) | ||
| Operating humidity | 10% to 95% RH (non-condensing) | ||
| Storage humidity | 10% to 95% RH (non-condensing) | ||
| Air pressure | 600 hPa to 1200 hPa | ||
| IP-rating | IP-66 tested acording to IEC/EN 60529 |
| ORDER NUMBER | DESCRIPTION | ||
|---|---|---|---|
| 1008122010 | TFIE-1 Full keypad with 1 programmable key | ||
| 1008122020 | TFIE-2 6 labelled programmable keys | ||
| ACCESSORIES | |||
| 1023594100 | EGA-1 Button protection (10x) for TFIE/TFIX/EAPII/EAPFX | ||
| 1023533312 | EMMAI-2H Handheld Industrial Microphone, Compact, Waterproof for EAPII/TFIE | ||
| 1008140100 | TA-10 Connection board with relays for TFIE/EAPII | ||
| 1008140225 | TA-22b 10m cable and plugbox w/PTT for Industrial headset (for TFIE) | ||
| 1008140230 | TA-23 Industrial/Marine Handset w/PTT (for TFIE) | ||
| 1008140250 | TA-25 Set of replacement screws (M6) for TFIE/TFIX/EAPII/EAPFX | ||
| 1008140260 | TA-26 Set of cable glands for TFIE/EAPII | ||
| AK5850HS | A-Kabel TwinCom Headband Headset ATEX |
| ELECTRICAL | |||
|---|---|---|---|
| Ethernet connector | 2 x RJ45 | ||
| Power options | PoE or external power supply | ||
| PoE (Power over Ethernet) | IEEE 802.3af standard, Class 0 (0.44W to 12.95 W) | ||
| Auxiliary DC power | 24 VDC nom (16 to 48 VDC) | ||
| Power consumption | 2 W (idle) to 12,9 W (max) | ||
| Built-in switch | Managed, DHCP, Firewall | ||
| Compatibility | SIP, ICX-AlphaCom, IC-EDGE, G.711, G.722, G.729, HD Voice | ||
| Handheld Microphone | Microphone (bal), PTT | ||
| Handset | Microphone (bal), Speaker (bal), + PTT | ||
| Headset | Microphone (bal), Speaker (bal) + PTT | ||
| Digital inputs/outputs | 6 (configurable input/output/LED-driving) | ||
| Relay outputs | 2 (250VAC/200VDC, 2A, 60W, 10^8 operations) | ||
| Audio | Line-in, Line-out | ||
| Aux power | 1 (tool-free terminals) |
| NETWORKING AND PROTOCOLS | |||
|---|---|---|---|
| Ethernet | 10BASE-TX, 100BASE-TX , Auto negotiation, Auto MDIX | ||
| Protocols | IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, DHCP, SNMP, ONVIF, CCoIP® , NTP | ||
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x) | ||
| Management and operation | HTTP/HTTPS (Web configuration) DHCP and static IP + IC-EDGE Remote automatic software upgrade Centralized monitoring | ||
| Advanced supervision functions | E.g. network test, tone test, status reports | ||
| SIP support | RFC 3261 (SIP base standard) | ||
| RFC 3515 (SIP refer) | |||
| RFC 2976 (SIP info) | |||
| DTMF support | RFC 2833, 2976 (SIP info) |
| CERTIFICATIONS | |||
|---|---|---|---|
| Immunity | EN 60945, EN 50130-4, EN 61000-6-1, EN 61000-6-2, FCC-47 part 15B | ||
| Emission | EN 60945, EN 50130-4, EN 61000-6-3, EN 61000-6-4, FCC-47 part 15B | ||
| Certificates | UL 60950-1, cUL 60950-1, CB to IEC 60950-1 |
| Other Specifications | |||
|---|---|---|---|
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
