TFIX-1-V2
TFIX-1-V2
Product Code: 1008123110
Product DataSheet

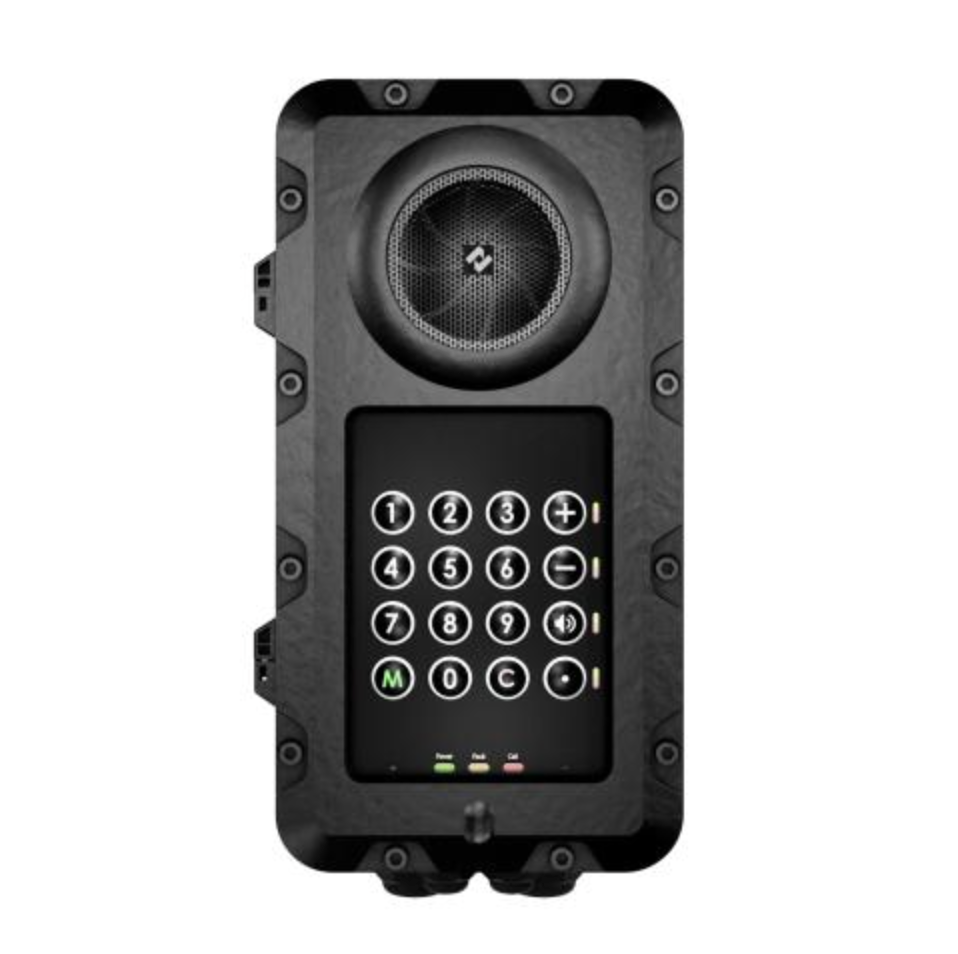

Ex IP Intercom Station- full keypad
- Ex IP intercom for potentially explosive atmospheres - Directive 2014/34/EU
- Ethernet compatible 2-wire interface
- DIP functionality for use with AlphaCom audio servers
- SIP/VoIP functionality for use with 3rd-party systems
- Dust- and water-protected to IP66
- Monitoring and self-diagnostics of critical functionality
- ONVIF Compatible
- Visible status indicators on front panel
- Integrated 25W amplifier for external loudspeaker
- Signal relay for external beacon
SIP
IC-Edge
ICX-AlphaCom
IP66
Active Noise Cancelling
IEC Ex Intercom
Atex
IP over 2-wire
| MECHANICAL | |||
|---|---|---|---|
| Dimensions | 345 x 178 x 101 mm | ||
| Weight | 4 kg | ||
| Mounting | On-wall box (included) | ||
| Color | Black |
| ENVIRONMENTAL | |||
|---|---|---|---|
| Operating temperature | -20°C to +55°C | ||
| Storage temperature | -40°C to +70°C | ||
| Operating humidity | 10% to 95% RH (non-condensing) | ||
| Storage humidity | 10% to 95% RH (non-condensing) | ||
| Air pressure | 600 hPa to 1200 hPa | ||
| IP rating | IP66 in accordance with IEC 60945 | ||
| IK rating | 4J | ||
| ELECTRICAL | |||
|---|---|---|---|
| PoE | NO, proprietary 2-wire data- and power bus | ||
| Power consumption | 4.2 W (idle) to 8 W (max), 38.5W (max) with external loudspeaker | ||
| DC power | 24-48 VDC (SELV) | ||
| 48 DVC PSU required when using external amplifier (One FCDC3 per station is also recommended when using external amplifier). |
| NETWORK | |||
|---|---|---|---|
| Connection | 2 x 2-wire | ||
| Connection type | Screw terminals | ||
| Functions | Auto negotiating | ||
| Built-in switch | N/A | ||
| Compatibility | SIP, ICX-AlphaCom, IC-EDGE, G.711, G.722, G.729, HD Voice, ONVIF |
| INPUTS AND OUTPUTS | |||
|---|---|---|---|
| Handheld Microphone | Microphone (bal), PTT | ||
| Handset | Microphone (bal), Speaker (bal) + PTT | ||
| Headset | Microphone (bal), Speaker (bal), + PTT | ||
| Digital inputs/outputs | 2 (Ex i type) | ||
| Relay outputs | 1 (60VDC, 320mA, 10^8 operations) | ||
| Audio | Yes, for audio accessories | ||
| Aux power | Provided by network cable | ||
| External speaker amplifier | 25W class D | ||
| External speaker specifications | Impedance=8Ohm, minimum rated power: 25W | ||
| Impedance=20Ohm, minimum rated power: 10W |
| CERTIFICATIONS | |||
|---|---|---|---|
| Immunity | EN 60945, EN 61000-6-2 | ||
| Emission | EN 60945, EN 61000-6-3, EN 61000-6-4 | ||
| CENELEC safety standards | EN 60079-0:2018, EN 60079-7:2015/A1:2018, EN 60079-11:2012, EN 60079-18:2015/A1:2017 | ||
| IEC safety standards | IEC 60079-0:2017, IEC 60079-7:2017, IEC 60079-11:2011, IEC 60079-18:2017 | ||
| Marking | II 2(2) G Ex e ib mb [ib] IIC T4 Gb -20°C ≤ Ta ≤ +55°C |
| Other specifications | |||
|---|---|---|---|
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
