TKIE-2
TKIE-2
Product Code: 1008132020
Product DataSheet

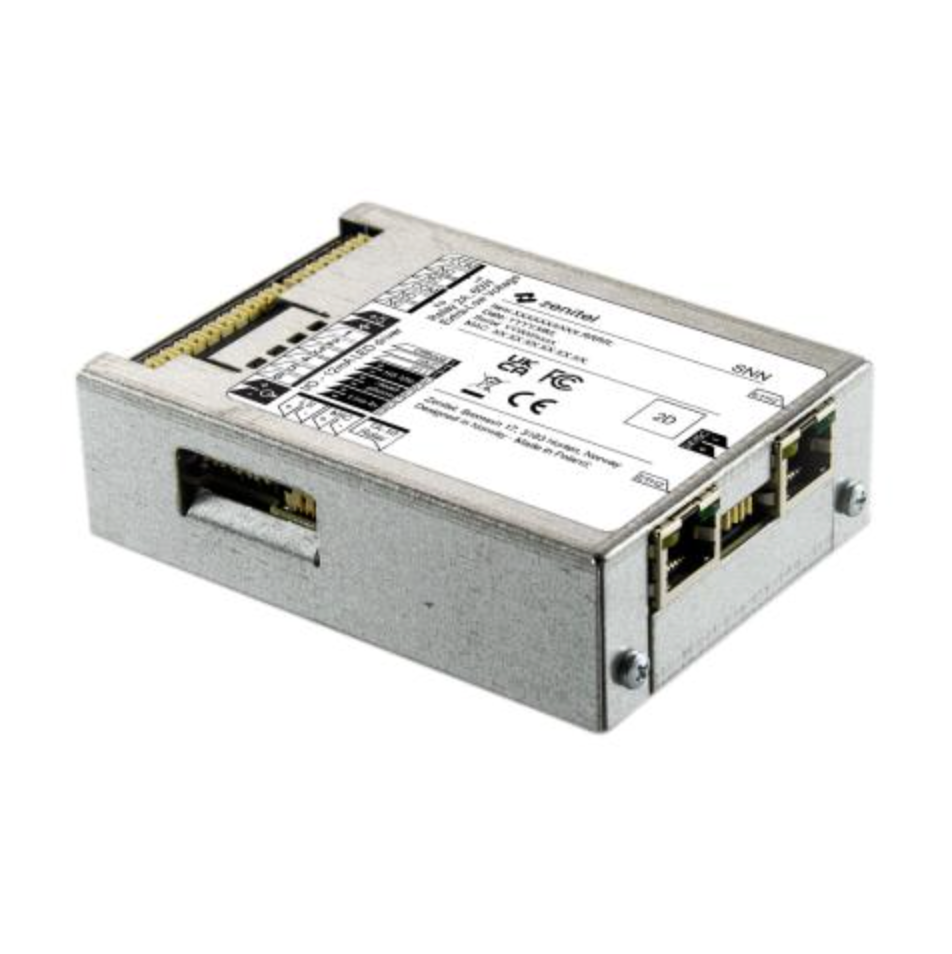

Extended IP Kit with Dual Ethernet Ports
- Metal enclosure - suitable for DIN-rail mounting
- Flexible integration options - with dual RJ45 Ethernet ports (integrated switch), dual DPDT relays, and six configurable I/Os (input, output, or LED-driving).
- Advanced Audio Technology - High sound pressure levels, automatic volume gain control, and active noise and echo cancellation for superior clarity.
- Seamless Integration - Fully compatible with Zenitel Connect Pro, ICX-AlphaCom, IC-EDGE, and SIP-based systems.
SIP
ONVIF Conformant
IC-Edge
ICX-AlphaCom
HD Voice
Exigo
| AUDIO | |||
|---|---|---|---|
| Codecs | G.711, G.722, G.729 | ||
| Frequency range, G.722 Codec | 200 Hz - 7000 Hz | ||
| Audio technology | Full open duplex, switched open duplex | ||
| Sound level detection (scream alarm) | |||
| Automatic gain control | |||
| Automatic volume control (AVC) | |||
| Acoustic Echo Cancellation (AEC) | |||
| Noise cancellation | |||
| Internal speaker amplifier | 10 W class D | ||
| Supported microphone technologies | Digital MEMS microphone, Electret microphone | ||
| Recommended loudspeaker impedance | 8 ohm |
| NETWORKING AND PROTOCOLS | |||
|---|---|---|---|
| Application Protocols | SIP, SIPS, HTTP, HTTPS, TFTP, RTP, SRTP, RTCP, RTSP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery | ||
| IP Versions | IPv4 & IPv6 | ||
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x) | ||
| Supervision functions | Keep alive test, tone test, status reports | ||
| SIP support | RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme | ||
| DTMF support | RFC 2833, 2976 (SIP info) | ||
| Integration and API | Connected to ICX-AlphaCom through AlphaCom protocol ACDP | ||
| Connected to Zenitel Connect Pro though Zenitel Link | |||
| ONVIF |
| HARDWARE | |||
|---|---|---|---|
| Ethernet connector | 2 x RJ45 | ||
| General inputs and outputs | 6 (configurable) | ||
| Outputs | 12mA as LED drivers | ||
| Change-over relays (NO+NC+COM) | Max: 250VAC/220VDC, 2A, 60W | ||
| Power options | PoE and or external power supply 24 VDC (16 – 48 V) | ||
| PoE (power over Ethernet) | IEEE 802.3af standard, Class 0 (0.44W to 12.95 W) | ||
| Power consumption | Idle 1.8W, max 12W (depending on volume) |
| Construction | |||
|---|---|---|---|
| Dimensions (HxWxD) | 74 x 106 x 30 mm / 2.9” x 4.2” x 1.2” | ||
| Weight | 0.1 kg / 0.2 lbs | ||
| Encapsulation material | Steel | ||
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
| ENVIRONMENTAL COMPLIANCES | |||
|---|---|---|---|
| Operating temperature range | -40° to 70° C / -40° to 158° F | ||
| Storage temperature range | -40° to 70° C / -40° to 158° F | ||
| Relative humidity | < 95% not condensing |
| Approvals | |||
|---|---|---|---|
| EMC | EN 61000-6-1, EN 61000-6-3, EN 50121-4, FCC part 15 | ||
| Sustainablilty | REACH, RoHS |
