TKIS-1
TKIS-1
Product Code: 1008131010
Product DataSheet

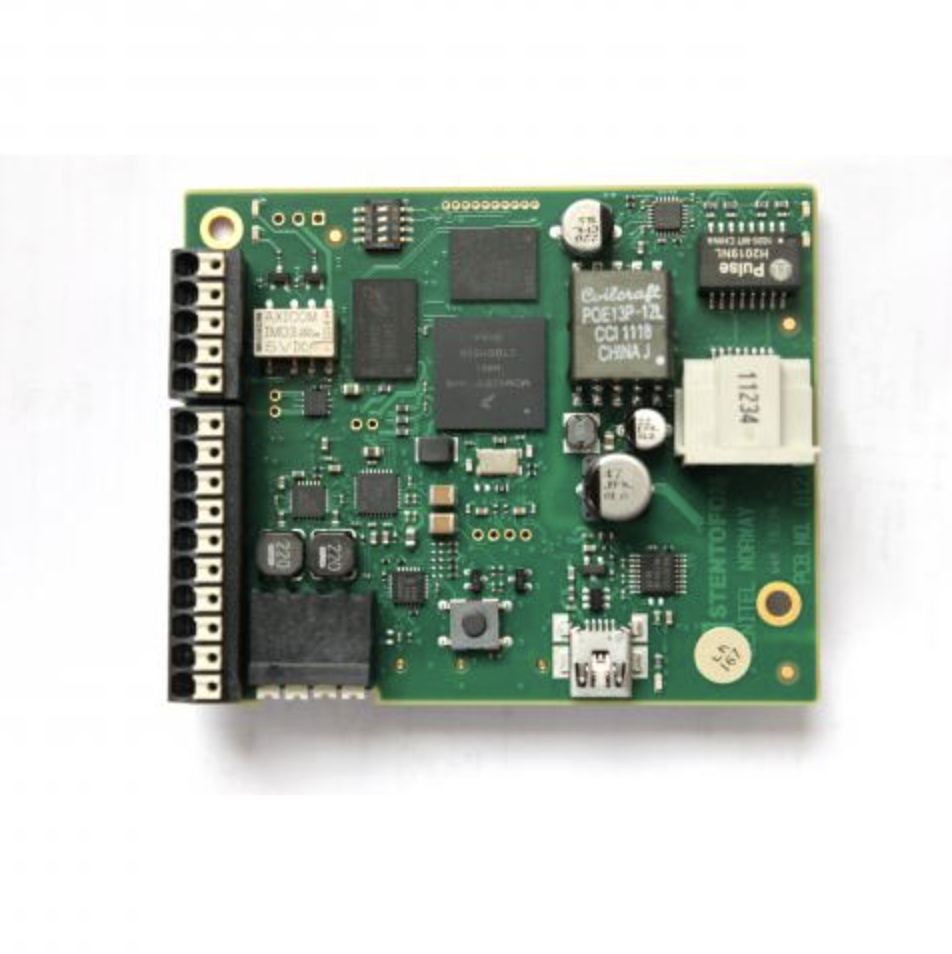

Turbine Kit IP Standard
- Build your own IP Intercom station or Help-Point
- Make your own 10W IP Speaker
- Control relay and I/Os over IP
- Supports a wide set of IP networking standards
- DIN-rail mountable clips included
- Add VoIP/CCoIP to your parking solution, cash point, vending machine, et al
- Advanced audio technology like automatic gain and volume adjustment, background noise cancellation, open duplex, etc.
UL Certified Intercom
ICX-AlphaCom
Exigo
| AUDIO | |||
|---|---|---|---|
| Noise cancelling - suppression of musical noise | YES | ||
| Noise cancelling - suppression of static noise | YES | ||
| Noise cancelling - suppression of rapidly changing noise | YES | ||
| Codecs | G.711, G.722, G.729 | ||
| Frequency range, G.722 Codec | 200 Hz – 7000 Hz | ||
| Audio technology | Modes: Full open duplex, switched open duplex, Adaptive jitter filter, Local tone generator, Audio mixing - 3 channels, Sound level detection (scream alarm), Automatic gain control (microphone), Automatic volume adjustment | ||
| Internal speaker amplifier | 10 W class D | ||
| Supported microphone technologies | Digital MEMS, omnidirectional microphone. Electret omnidirectional microphone | ||
| Recommended loudspeaker impedance | 8 ohm |
| HARDWARE | |||
|---|---|---|---|
| Ethernet connector | 1 x RJ 45 | ||
| All other connectors | Tool less, spring loaded, vibration proof terminals | ||
| General inputs and outputs | 6 (configurable) | ||
| Outputs | 12mA as LED drivers | ||
| Change-over relay (NO+NC+COM) | Max: 250VAC/220VDC, 2A, 60W | ||
| Power options | PoE and or external power supply | ||
| PoE (power over Ethernet) | IEEE 802.3af standard, Class 0 (0.44W to 12.95 W) | ||
| External power supply | 24 VDC (16 – 48 V) | ||
| Power consumption | Idle 1.8W, max 12W (depending on volume) | ||
| Audio line out / induction loop signal | 600 Ohm |
| NETWORKING AND PROTOCOLS | |||
|---|---|---|---|
| Protocols | IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, DHCP, SNMP, STENTOFON CCoIP® , NTP | ||
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x) | ||
| Management and operation | HTTP/HTTPS (Web configuration) DHCP and static IP + IC-EDGE. Remote automatic software upgrade. Centralized monitoring | ||
| Advanced supervision functions | E.g. network test, tone test, status reports | ||
| SIP support | RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info) | ||
| DTMF support | RFC 2833, 2976 (SIP info) |
| ENVIRONMENT AND COMPLIANCES | |||
|---|---|---|---|
| Operating temperature range | -40° to 70° C / -40° to 158 ° F | ||
| Storage temperature range | -40° to 70° C / -40° to 158 ° F | ||
| Relative humidity | < 95% not condensing | ||
| EMC | CE and FCC Part 15 | ||
| Certificates | UL 60950-1, cUL 60950-1, CB to IEC 60950-1 |
| OTHER SPECIFICATIONS | |||
|---|---|---|---|
| IP address information | Speaks IP address after system boot (requires connected loudspeaker) | ||
| Country of manufacture | Poland | ||
| Dimensions (HxWxD) | 32 x 117 x 71 mm | ||
| Weight | 0.1 kg / 0.2 lbs | ||
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
