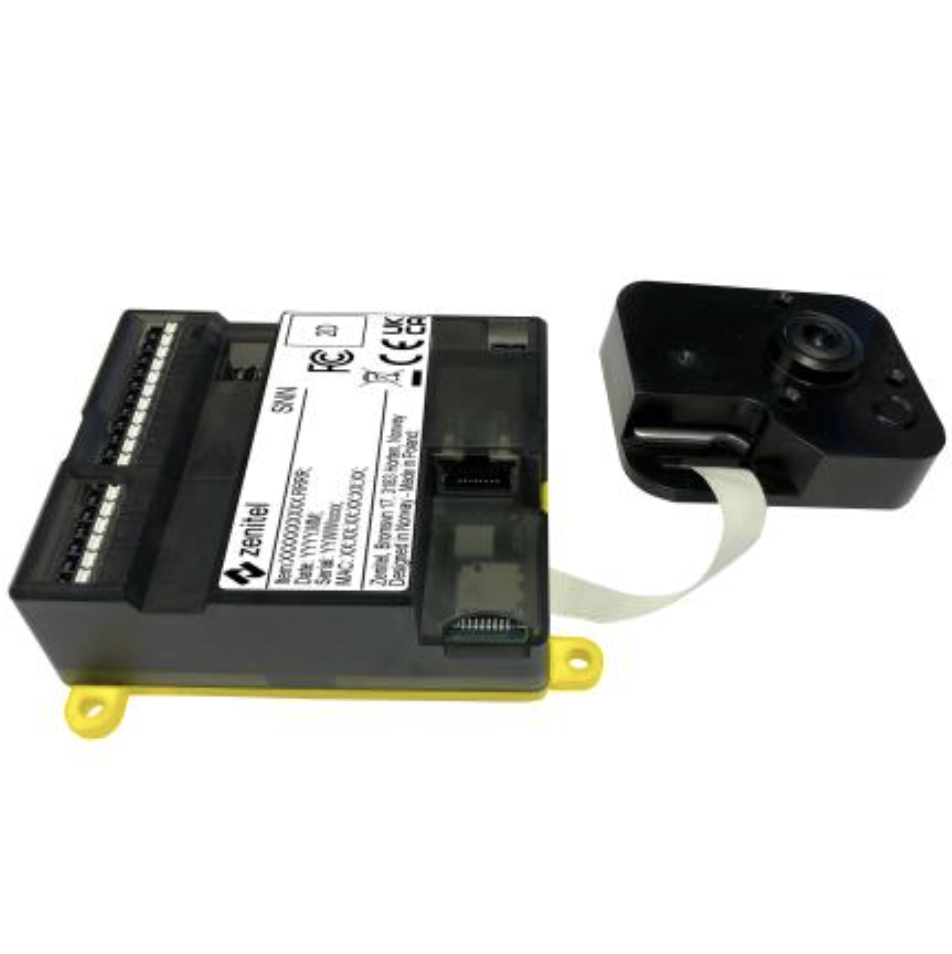

TKIV+ Video Intercom kit
TKIV+ Video Intercom kit
Product Code: 1008331010
Product DataSheet
Turbine Video - VoIP Intercom Module
SIP
ONVIF Conformant
IC-Edge
ICX-AlphaCom
HD Voice
Automatic Gain Control
Active Noise Cancelling
Open Duplex
Video Intercom
H.264
Video
| Audio | |||
|---|---|---|---|
| SPL peak power at 1m in open duplex | 90 dB | ||
| SPL peak power at 1m in half duplex | 100 dB | ||
| SPL peak power at 1m in program distribution and announcement | 100 dB | ||
| Noise cancelling - suppression of musical noise | Yes | ||
| Codecs | G.711, G.722, G.729 | ||
| Frequency range, G.722 Codec | 200 Hz – 7000 Hz | ||
| Audio technology | Modes: Full open duplex, switched open duplex | ||
| Adaptive jitter buffer | |||
| Custom Ringing Tone | |||
| Audio Mixing – Conversation and Group Call | |||
| Sound Level Detection / scream alarm (only in AlphaCom) | |||
| Automatic gain control (microphone) | |||
| Internal speaker amplifier | 10 W class D | ||
| Internal speaker | 10 W | ||
| Microphone technology | Digital MEMS, omnidirectional microphone | ||
| Automatic Volume Control (AVC) | Yes | ||
| Acoustic Echo Cancellation (AEC) | Yes |
| Video | |||
|---|---|---|---|
| Image Sensor | 1/2.5" RGB CMOS | ||
| Lens | F 2.0, fixed iris | ||
| Light Sensitivity | Down to 1 lux | ||
| Resolution | 240 / 480p / 960x720p / 1440x1080p* | ||
| Frame Rate | Up to 30 FPS in 1440x1080p** | ||
| Supported Codecs | MJPEG, H.264 *** | ||
| Digital PTZ | Yes | ||
| Digital Zoom | Up to 4x | ||
| Field of View | Configurable up to 180 degrees horizontally and vertically | ||
| Snapshot Function | No | ||
| IR LED | No | ||
| Parallel videostreams | 6 (1x SIP H.264, 2x HTTP MJPEG, 3x RTSP sessions) | ||
| * MJPEG does not support 720p and 1080p resolution. | |||
| ** 30 FPS is only supported in H.264 mode, while MJPEG is limited to 10 FPS. | |||
| *** ICX-AlphaCom mode supports only RTSP H.264 mode, while other modes support SIP H.264. |
| Hardware | |||
|---|---|---|---|
| Ethernet connector | 1 x RJ-45 | ||
| All other connectors | Tool less, spring loaded, vibration proof terminals | ||
| General inputs and outputs | 6 (configurable) | ||
| Outputs | 12mA as LED drivers | ||
| Change-over relay (NO+NC+COM) | SELV | ||
| Power options | PoE, PoE+, external power supply | ||
| PoE (Power over Ethernet) | IEEE 802.3af standard, IEEE 802.3at | ||
| External power supply | 24VDC - 48VDC | ||
| Power consumption | Idle 3.5W, max 12W (depending on volume) | ||
| Audio Line out / Induction loop signal | 600 OHM | ||
| Length of included camera connection cable | 100 mm |
| Processor / Chipset | |||
|---|---|---|---|
| CPU cores | 4 x Cortex-A53 | ||
| CPU Clock Speed | 1.6 GHz | ||
| RAM | 512MB LPDDR4 | ||
| Flash | 1 Gb | ||
| Video encoder | MJPEG, H.264 | ||
| Dual Image | Yes |
| Construction | |||
|---|---|---|---|
| Dimensions CPU module (HxWxD) | 89 x 108 x 31 mm | ||
| Dimensions camera module (HxWxD) | 53 x 66 x 23 mm |
| Networking & Protocols | |||
|---|---|---|---|
| Protocols | IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, RTSP, RTCP, SRTP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery | ||
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f), Power over Ethernet (IEEE 802.3at) | ||
| Management and operation | HTTP/HTTPS (Web configuration). DHCP and static IP. Remote automatic software upgrade. Centralized monitoring. | ||
| Advanced supervision functions | E.g network test, tone test, status reports (only in AlphaCom) | ||
| SIP support | RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme | ||
| DTMF support | RFC 2833, 2976 (SIP info) | ||
| Integration and API | AlphaCom, Scripting (plugins) |
| Environmental | |||
|---|---|---|---|
| Operating temperature range | -30° to 70° C / -22° to 158 ° F | ||
| Storage temperature range | -40° to 70° C / -40° to 158 ° F |
| CERTIFICATIONS | |||
|---|---|---|---|
| ONVIF Conformance | Profile S for streaming video |
| Other Specifications | |||
|---|---|---|---|
| IP address information | Speaks IP address after system boot | ||
| Country of manufacture | Poland | ||
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
