TMIS-4
TMIS-4
Product Code: 1008116040
Product DataSheet

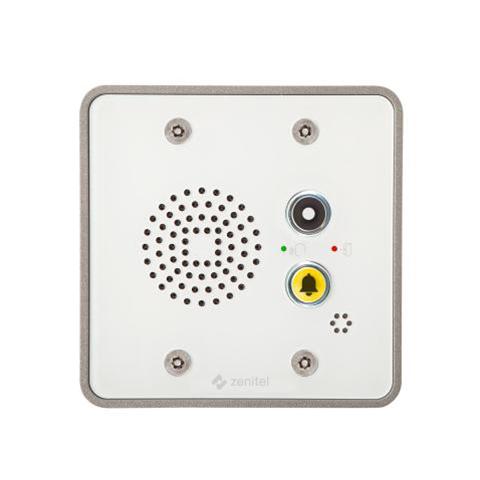

Mini IP and SIP Intercom - 2 Buttons
- Durable white thermoplastic front plate with two programmable call buttons, and LED indicator for door status.
- Advanced Audio Technology - High sound pressure levels, automatic volume gain control, and active noise and echo cancellation for superior clarity.
- ONVIF Conformant - Seamless video and device integration
- Flexible Installation - Options for wall or flush mounting
- Seamless Integration - Fully compatible with Zenitel Connect Pro, ICX-AlphaCom, IC-EDGE, and SIP-based systems.
Zenitel ConnectPRO
Door Intercom
SIP
ONVIF Conformant
UL Certified Intercom
IC-Edge
ICX-AlphaCom
HD Voice
The TMIS-4, a robust IP intercom station designed for building-security, public-space or emergency-call point installations. With two call buttons, two-way natural communication in HD voice, and background-noise cancellation, it delivers clear and reliable interaction even in noisy environments. Crafted with a die-cast aluminium frame, it integrates seamlessly with IP networks via SIP, ONVIF and other standard protocols. Whether used for information, warning, or everyday access-control communication, the TMIS-4 brings high performance in a compact, sleek format.
| AUDIO | |||
|---|---|---|---|
| Max SPL @ 0.5m | 96 dB | ||
| Codecs | G.711, G.722, G.729 | ||
| Frequency range, G.722 Codec | 200 Hz – 7000 Hz | ||
| Audio technology | Full open duplex, switched open duplex | ||
| Sound level detection (scream alarm) | |||
| Automatic volume control (AVC) | |||
| Acoustic Echo Cancellation (AEC) | |||
| Noise cancellation | |||
| Internal speaker amplifier | 10 W class D | ||
| Internal speaker | 1 W | ||
| Microphone technology | Digital MEMS, omnidirectional microphone |
| NETWORKING & PROTOCOLS | |||
|---|---|---|---|
| Application Protocols | SIP, SIPS, HTTP, HTTPS, TFTP, RTP, SRTP, RTCP, RTSP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery | ||
| IP Versions | IPv4 & IPv6 | ||
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f), Network Access Control (IEEE 802.1x) | ||
| Supervision functions | Keep alive test, tone test, status reports | ||
| SIP Support | RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme | ||
| DTMF Support | RFC 2833, 2976 (SIP info) | ||
| Integration and API | Connected to ICX-AlphaCom through AlphaCom protocol ACDP | ||
| Connected to Zenitel Connect Pro though Zenitel Link | |||
| ONVIF |
| HARDWARE | |||
|---|---|---|---|
| Ethernet connector | 1 x RJ45 | ||
| General inputs and outputs | 6 (configurable) | ||
| Outputs | 12mA as LED drivers | ||
| Change-over relay (NO+NC+COM) | SELV | ||
| Power options | PoE, PoE+ | ||
| PoE (Power over Ethernet) | IEEE 802.3af standard | ||
| Power consumption | 2.8 W | ||
| Button backlight | LED | ||
| Call indication | Icons/colors for hearing impaired |
| CONSTRUCTION | |||
|---|---|---|---|

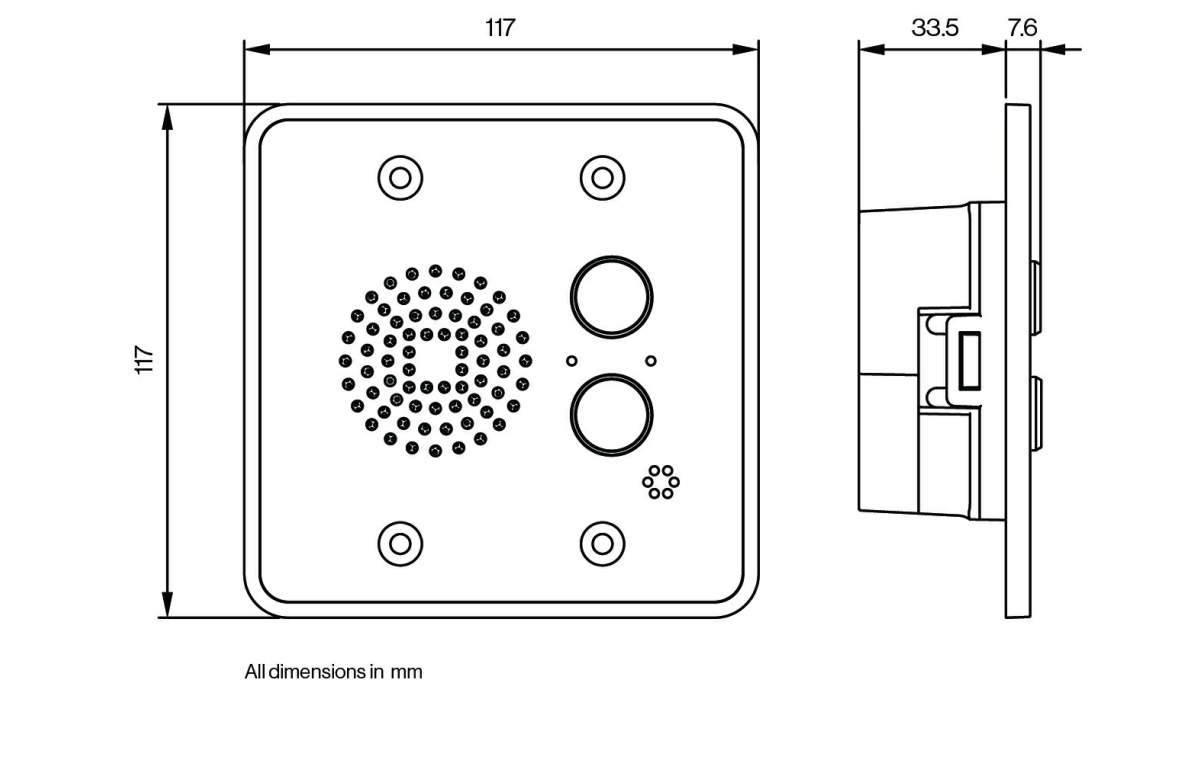

| Dimensions (HxWxD) | 117 x 117 x 39 mm / 4.6'' x 4.6'' x 1.5'' | ||
| Dimensions after flush mount | 117 x 117 x 5.5 mm / 4.6'' x 4.6'' x 0.2'' | ||
| Weight | 0.3 kg / 0.66 lbs. | ||
| Faceplate material | 2 mm / 0.12” PMMA, colour printed on back side | ||
| Base / frame material | 3 mm / 0.12” Aluminum alloy - A413.0, AlSi12Fe, painted | ||
| Electronics cover material | Polycarbonate (translucent) | ||
| Loudspeaker poke protection, small diameter objects | Stainless steel mesh, acoustically transparent |
| Environmental compliances | |||
|---|---|---|---|
| IP rating | IP42 | ||
| Operating temperature range | -25° to 55° C / -13° to 131° F | ||
| Storage temperature range | -25° to 55° C / -13° to 131° F | ||
| Relative humidity | < 95% non-condensing |
| Approvals | |||
|---|---|---|---|
| EMC | EN 61000-6-1, EN 61000-6-3 | ||
| Safety | IEC / UL 62368-1, IECEE CB | ||
| Sustainability | RoHS, REACH |
| OTHER SPECIFICATIONS | |||
|---|---|---|---|
| Country of manufacture | Poland | ||
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
