VR3G-1
VR3G-1
Product Code: 1008021010
Product DataSheet

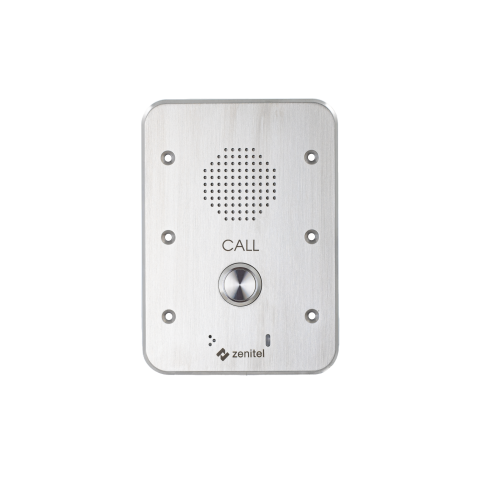

Vandal Resistant, 3 gang, 1 button IP and SIP Intercom
- Robust - Stainless steel front plate with one call button
- Advanced Audio Technology - High sound pressure levels, automatic volume gain control, and active noise and echo cancellation for superior clarity.
- Anti-ligature / tamper-resistant design: Tamper switch alarm, soft-rounded corners to reduce risk of self-harm or abuse.
- Weather-Resistant (IP66) & Robust (IK10)
- ONVIF Conformant - Seamless video and device integration
- Seamless Integration - Fully compatible with Zenitel Connect Pro, ICX-AlphaCom, IC-EDGE, and SIP-based systems.
Zenitel ConnectPRO
Door Intercom
SIP
IC-Edge
ICX-AlphaCom
IP66
HD Voice
IK10
Prison Intercom
Emergency points
The Vandal Resistant Intercom Station VR3G-1 utilizes the latest technology to create unparalleled audio quality. Some of the many features include: HD voice quality, Open Duplex, Active Noise Cancellation, and an Electret Omni Directional microphone. These features, in conjunction with the company's 70+ years of experience with acoustic technology, are just a few of the many factors that contribute to our superior audio quality.
| Audio | |||
|---|---|---|---|
| Max SPL @ 0.5m | 86 dBA | ||
| Codecs | G.711, G.722, G.729 | ||
| Frequency range, G.722 Codec | 200 Hz – 7000 Hz | ||
| Audio technology | Full open duplex, switched open duplex | ||
| Sound level detection (scream alarm) | |||
| Automatic gain control | |||
| Automatic volume control (AVC) | |||
| Acoustic Echo Cancellation (AEC) | |||
| Noise cancellation | |||
| Internal speaker | 3 W | ||
| Microphone technology | Electret Omni Directional microphone |
| Networking & Protocols | |||
|---|---|---|---|
| Application Protocols | SIP, SIPS, HTTP, HTTPS, TFTP, RTP, SRTP, RTCP, RTSP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery | ||
| IP Versions | IPv4 & IPv6 | ||
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x) | ||
| Supervision functions | Keep alive test, tone test, status reports | ||
| SIP support | RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info) | ||
| DTMF support | RFC 2833, 2976 (SIP info) | ||
| Integration and API | Connected to ICX-AlphaCom through AlphaCom protocol ACDP | ||
| Connected to Zenitel Connect Pro though Zenitel Link | |||
| ONVIF |
| Hardware | |||
|---|---|---|---|
| Ethernet connector | 1 x RJ-45 | ||
| General inputs and outputs | 6 (configurable) | ||
| Outputs | 12mA as LED drivers | ||
| SELV (Safety Extra Low Voltage) | 2A, 60W | ||
| Power options | PoE and/or external power supply | ||
| PoE (Power over Ethernet) | IEEE 802.3af standard, Class 0 (0.44W to 12.95 W) | ||
| External power supply | 24 - 48 VDC (24 – 48 V) | ||
| Power consumption | Idle 1.8W, max 12W (depending on volume) | ||
| Call indication | Icons/colors for hearing impaired |
| Construction | |||
|---|---|---|---|
| Dimensions (HxWxD) | 160 x 114 x 60 mm / 6.3'' x 4.5'' x 2.36'' | ||
| Dimensions after flush mount | 160 x 114 x 4 mm / 6.3'' x 4.5'' x 0.2'' | ||
| Weight | 0.73 kg / 1.6 lbs. | ||
| Faceplate material | A4 steel | ||
| Electronics cover material | Polycarbonate (translucent) | ||
| Gasket material | Low density soft EPDM-foam (closed cell), t:2mm. | ||
| Button material | A4 steel | ||
| Poke protection, small/large diameter objects: | Ø1.8 mm |
| Environmental | |||
|---|---|---|---|
| IP rating | 66 | ||
| IK rating | 10 | ||
| Operating temperature range | -40° to 70° C / -40° to 158 ° F | ||
| Relative humidity | < 95% not condensing |
| Approvals | |||
|---|---|---|---|
| EMC | EN 61000-6-1, EN 61000-6-3, FCC part 15 | ||
| Safety | EN 62368-1 | ||
| Sustainability | RoHS, REACH |
| Other Specifications | |||
|---|---|---|---|
| Country of manufacture | Poland | ||
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
