VR3G-1P
VR3G-1P
Product Code: 1008021015
Product DataSheet

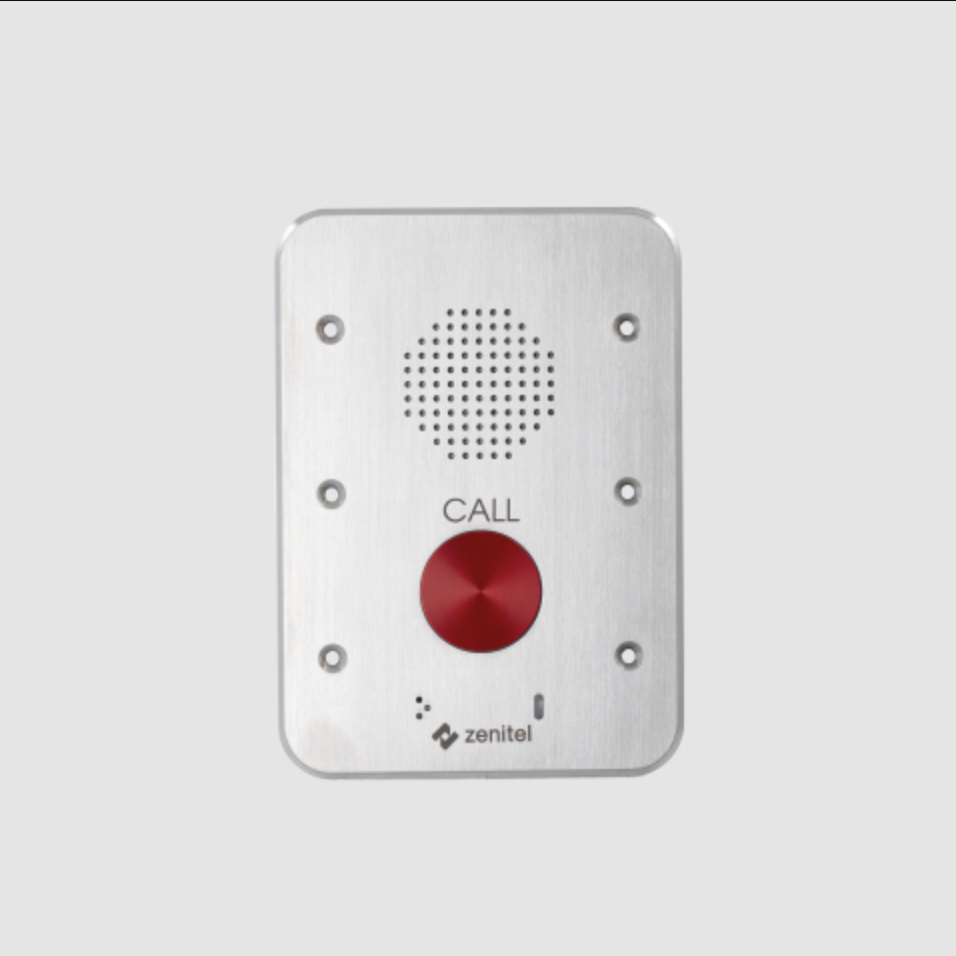

Vandal Resistant, 3 gang, 1 Piezo button, IP and SIP intercom
- Robust - Stainless steel front plate with one call button
- Advanced Audio Technology - High sound pressure levels, automatic volume gain control, and active noise and echo cancellation for superior clarity.
- Anti-ligature / tamper-resistant design: Flush mounted piezo call button (no moving parts), tamper switch alarm, soft-rounded corners to reduce risk of self-harm or abuse.
- Weather-Resistant (IP66) & Robust (IK10)
- ONVIF Conformant - Seamless video and device integration
- Seamless Integration - Fully compatible with Zenitel Connect Pro, ICX-AlphaCom, IC-EDGE, and SIP-based systems.
Zenitel ConnectPRO
Door Intercom
SIP
ONVIF Conformant
IC-Edge
ICX-AlphaCom
IP66
HD Voice
IK10
Prison Intercom
Emergency points
The Vandal Resistant Intercom Station VR3G-1P utilizes the latest technology to create unparalleled audio quality. Some of the many features include: HD voice quality, Open Duplex, Active Noise Cancellation, and an Electret Omni Directional microphone. The Piezo button has no moving parts, which makes it highly durable and increases the station's resistance to damage. These features, in conjunction with the company's 70+ years of experience with acoustic technology, are just a few of the many factors that contribute to our superior audio quality.
| Audio | |||
|---|---|---|---|
| Max SPL @ 0.5m | 86 dBA | ||
| Codecs | G.711, G.722, G.729 | ||
| Frequency range, G.722 Codec | 200 Hz – 7000 Hz | ||
| Audio technology | Full open duplex, switched open duplex | ||
| Sound level detection (scream alarm) | |||
| Automatic gain control | |||
| Automatic volume control (AVC) | |||
| Acoustic Echo Cancellation (AEC) | |||
| Noise cancellation | |||
| Internal speaker | 3 W | ||
| Microphone technology | Electret Omni Directional microphone |
| Networking & Protocols | |||
|---|---|---|---|
| Application Protocols | SIP, SIPS, HTTP, HTTPS, TFTP, RTP, SRTP, RTCP, RTSP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery | ||
| IP Versions | IPv4 & IPv6 | ||
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x) | ||
| Supervision functions | Keep alive test, tone test, status reports | ||
| SIP support | RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info) | ||
| DTMF support | RFC 2833, 2976 (SIP info) | ||
| Integration and API | Connected to ICX-AlphaCom through AlphaCom protocol ACDP | ||
| Connected to Zenitel Connect Pro though Zenitel Link | |||
| ONVIF |
| Hardware | |||
|---|---|---|---|
| Ethernet connector | 1 x RJ-45 | ||
| General inputs and outputs | 6 (configurable) | ||
| Outputs | 12mA as LED drivers | ||
| SELV (safety Extra Voltage) | 2A, 60W | ||
| Power options | PoE and/or external power supply | ||
| PoE (Power over Ethernet) | IEEE 802.3af standard, Class 0 (0.44W to 12.95 W) | ||
| External power supply | 24 - 48 VDC (24 – 48 V) | ||
| Power consumption | Idle 1.8W, max 12W (depending on volume) | ||
| Call indication | Icons/colors for hearing impaired |
| Construction | |||
|---|---|---|---|
| Dimensions (HxWxD) | 160 x 114 x 60 mm / 6.3'' x 4.5'' x 2.36'' | ||
| Dimensions after flush mount | 160 x 114 x 4 mm / 6.3'' x 4.5'' x 0.15'' | ||
| Weight | 0.74 kg / 1.6 lbs. | ||
| Faceplate material | A4 Steel | ||
| Electronics cover material | Polycarbonate (translucent) | ||
| Gasket material | Low density soft EPDM-foam (closed cell), t:2mm. | ||
| Button material | Aluminium | ||
| Poke protection, small/large diameter objects: | Ø1.8mm |
| Environmental compliancies | |||
|---|---|---|---|
| IP rating | 66 | ||
| IK rating | 10 | ||
| Operating temperature range | -20° to 75° C / -4° to 167 ° F | ||
| Relative humidity | < 95% not condensing |
| Approvals | |||
|---|---|---|---|
| EMC | EN 61000-6-1, EN 61000-6-3, FCC part 15 | ||
| Safety | EN 62368-1 | ||
| Sustainability | RoHS, REACH |
| Other Specifications | |||
|---|---|---|---|
| Country of manufacture | Poland | ||
| Warranty | 2 Years standard warranty, extendible up to total of 5 years (additional fee) |
